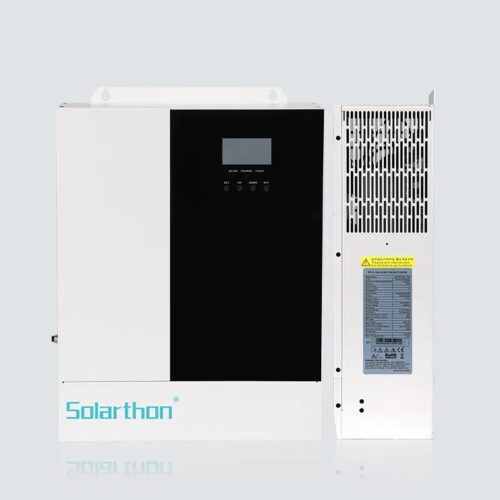

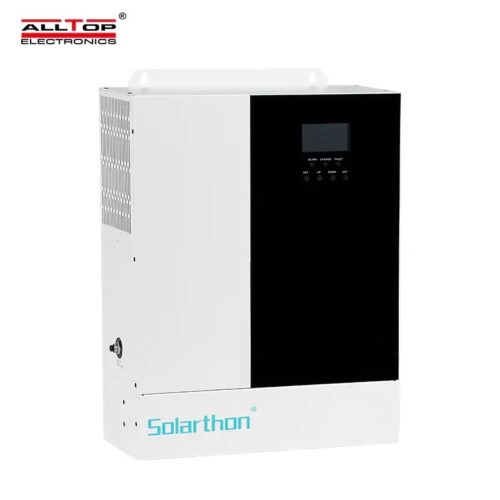

3500Watts Pure Sine Wave On/Off Grid Solar Inverter
This product has been added to 2 people'scarts.
- Delivery (Same day delivery for orders placed before 2pm within Lagos. Three to five days for orders outside Lagos)
- Warranty (One year)
- After Sales Support (Monday to Friday (09:00AM - 05:00PM)
Description
| Rated Power | 3500W | |||||
| Peak Power | 7000VA | |||||
| Output Frequency | ||||||
| Load motor capability | 2HP | |||||
| Efficiency(AC Mode) | ＞91% | |||||
| Output voltage waveform | Pure sine wave | |||||
| MPPT Tracking Voltage Range | 120V-85VDC | |||||
| Charging Mode | MPPT | |||||
| Max PV Input Current | 40A | |||||
| PV Array Maximum Power | 4400W | |||||
| Product Size(mm) | 426*322*124 | |||||
| Intallation | wall mounted and portable | |||||
This series is a new hybrid solar energy energy storage inverter control integrated machine integrating solar energy storage & mains charging energy storage and AC sine wave output.It adopts DSP control and adopts advanced control algorithm, with high response speed and high reliability. and high industrial standards.
Built-in lithium battery activation function, support lead-acid battery, lithium battery access.With multiple protection functions, 360° all-round protection.
It has complete short-circuit protection, over- and under-voltage protection, overload protection, back-feed protection, etc. Both AC and photovoltaic can activate lithium batteries.
Adopt fully digital voltage and current double closed-loop control, advanced SPWM technology, output pure sine wave.

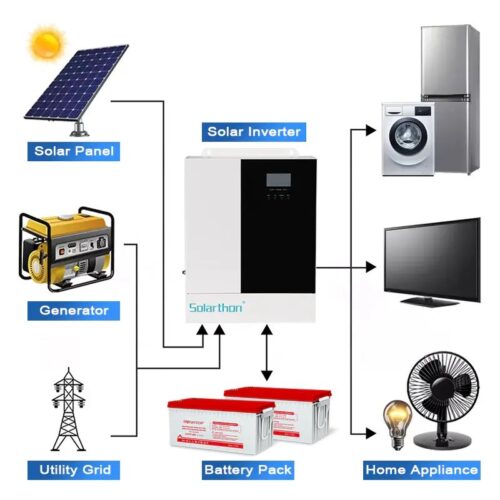

It has two output modes: mains bypass and inverter output, and has the function of uninterrupted power supply.
There are 4 charging modes to choose from: solar only, mains priority, solar priority, and hybrid charging.
Advanced MPPT technology, the efficiency is as high as 99.9%.
LCD liquid crystal screen design, 3 LED indicators, dynamic display of system data and operating status.
The ON/OFF rocker switch controls the AC output.It has a power saving mode function to reduce no-load loss.
Adopt intelligent adjustable speed fan, efficient heat dissipation and prolong system life.
